MPI

Mesher can use MPI to regularize the input rasters in parallel, and to do the regridding of the parameter rasters to the triangles. Mesher can also do a type of parallel mesh generation. A few considerations about this are described below.

Mesher will invoke the MPI processes itself

The main mesher application is single process and mesher will invoke the MPI sub-tasks itself. By default, MPI Spawn will be used. This is only supported with OpenMPI and assumes that mesher is running in a context where it makes sense to spawn MPI ranks (e.g., HPC job). In constrained HPC context, it may be better to have the main mesher process running in a small job and spawn MPI sub-jobs in dedicated jobs. This is where MPI_exec_str is used. MPI_exec_str can be a job submission script. Using the MPI spawn can sometimes not work, so setting MPI_exec_str=f'mpirun -n {MPI_nworkers} python ' may be preferred.

Mesh seam

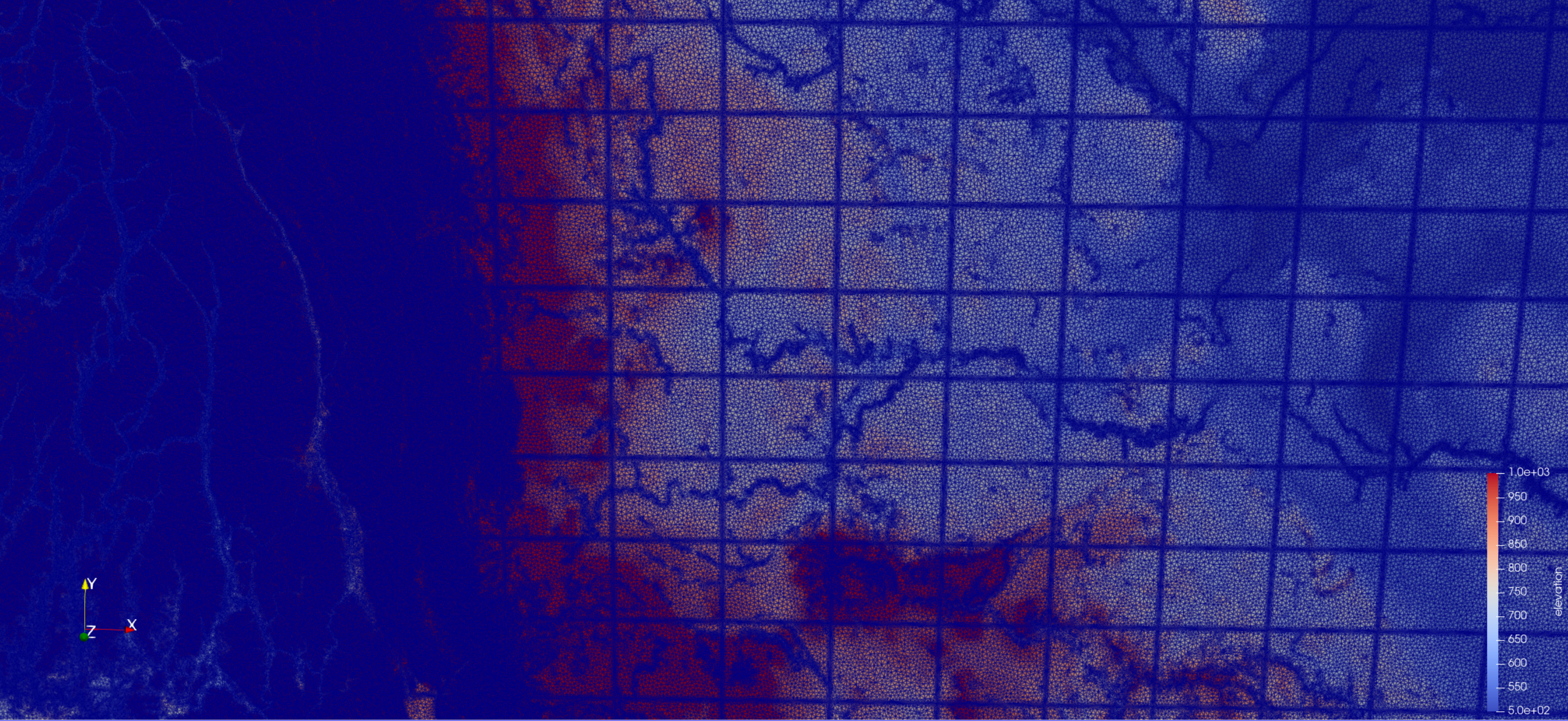

The mesh generator is, by default, serial. For large meshes, this can be very slow. Enabling multiple MPI workers will split the domain into subdomains and mesh each subdomain independently. The subdomains are ensured to line up by placing points along the seam, approximately spaced at the smallest allowed triangle size. This can be controlled with mpi_shared_edge_spacing. Setting a lower density can ensure this boundary seam is not over reprsented, but the triangles may not be strictly Delaunay while crossing the boundary. This can result in a regular pattern of small triangles. This is more evident in areas with low topographic variability than in areas with high variability.

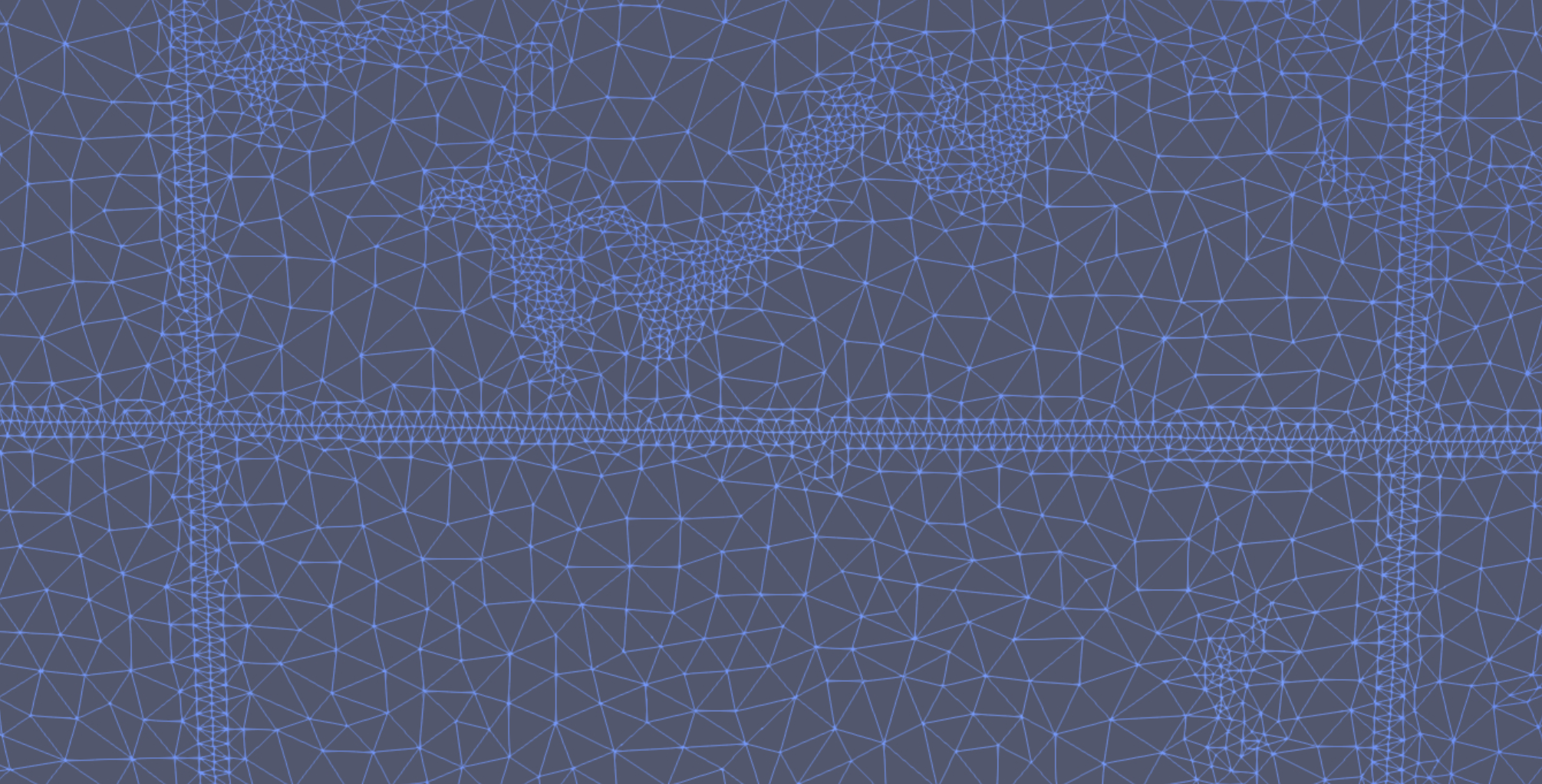

Zoom in of a seam

lloyd iterations

Global lloyd iterations breaks the alignment across the seams.

MPI mesh gen

To do the triangulation in parallel, mpi_mesh=True must be set.
